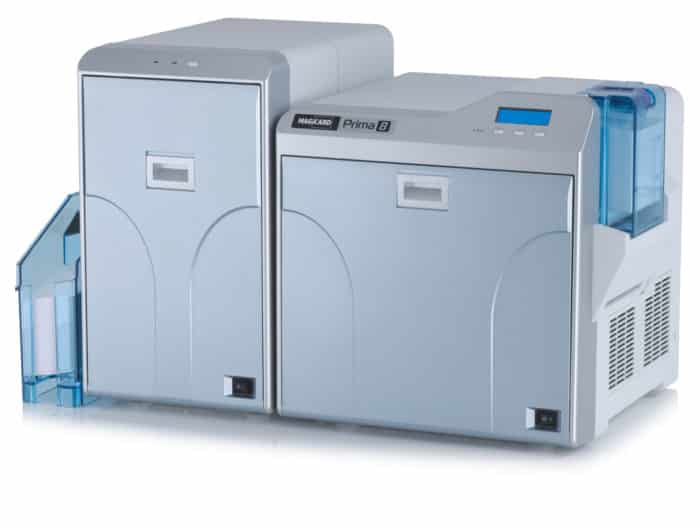

In-line lamination for extra durability and security
The Magicard Prima 8 is available with in-line lamination. This adds an additional overlay to protect the card from wear and fading of the image, mainly for cards which are used frequently or in outdoor environments. Laminates can be overlays or patch. Patch provides a thick protection layer on the card but is not quite edge-to-edge. Overlay provides a thinner protection layer, but is fully edge-to-edge.
Both types of laminates can also be supplied with a customizable holographic design. This is particularly suited to very high volume secure card printing. For lower volume secure printing use Custom HoloKote® on the Ultima or the Rio Pro 360.
High-volume photo quality printing

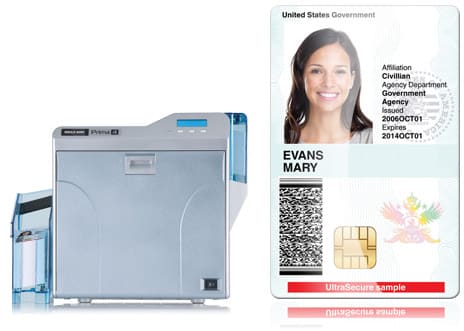

FIPS 201 certified for the personalization of US Government credentials, the Magicard Prima 8 provides a reliable, robust solution for instant issuance in a compact package. Using a retransfer printing process, images are first printed onto a thin film then heat transferred onto the card surface. This produces a high resolution glossy image, printed right over the edge of the card.
Customizable stealth security
A special dye sublimation Ultra Violet (UV) ribbon can be used with the Prima 8 for the printing of invisible photographs, logos, text or symbols when issuing high security cards. The UV ink is not detectable to the naked eye, but is only visible with the use of a UV light source. This special YMCK-UV ribbon offers an affordable yet still highly secure feature to decrease susceptibility to counterfeiting.
Trusted electronic security
The Magicard Prima 8 can be equipped with a range of card encoding devices to write secure electronic data to cards at the point of issuance. Smart card encoding options include contact chip, MIFARE®, DESFire® and iClass®. Specialist high-security encoders, such as EMV accredited devices, can also be fitted for the inline personalization of payment cards. The Prima 8 can also be supplied with a magnetic stripe encoder built-in.
Backed by the industry’s best 3 year warranty
If you’ve any queries about this product, please contact us here or give us a call at (042) 35341901.
| Printing System | Dye sublimation re-transfer |
|---|---|
| Printing Density | 300dpi retransfer |
| Feed System | Hopper fed |
| Card Hopper | 100 Cards |
| Card output hopper | 100 Cards |
| Printing Sides | Double Sided Printing |
| Encoding | Magnetic stripe, Smart card (contact and contactless) encoding |
| Card Types | ABS, HiCo magnetic stripe and smart cards, PET, polycarbonate ISO blank cards, PVC, PVH |
| Visual Security | Custom holographic laminates, Standard holographic laminates, UV printing: YMCK-UV 750 images (full colour and UV panel) |
| Interface | Ethernet (100BASE-TX / 10BASE-T), USB2.0 (Hi-speed / Full Speed) |
| Operating Systems | Mac OS X 10.9.0 upwards. Linux with CUPS support, Microsoft® Windows®10 32bit/64bit, Microsoft® Windows®8 (including 8.1) 32bit/64bit |
| Printing Speed | Color: Over 100 cards per hour |
| Cards thickness | 0.25mm ~ 1.00mm Size: 54.0mm * 85.6mm |
| Card Size | ISO CR79 83.9mm x 51mm / 3.303″ x 2.051″, ISO CR80 85.6mm x 54mm / 3.375″ x 2.125″ |
| Mass approx. | 15.5 Kg / 34 lbs, Laminator: 8.5Kg / 18.7 lbs |
| Temperature | 10°C to 30°C / 50°F to 85°F |
| Power Source | External power brick for 90-265V 40-60Hz |
| Printer Variants | Pronto Uno Mag: Single-sided printer with magnetic stripe encoder 3649-0002, Pronto Uno Smart: With smart card encoder 3649-0003, Pronto Uno: Single-sided printer 3649-0008 |
| Security Features | Electronic locking system for input hopper, colour ribbon and INTM Film |
| Dimensions | Height: 320 mm / 12.6″ Width: 343 mm / 13.5″ Length: 330 mm / 13″, Laminator: Height: 360 mm / 14.1″ Width: 210 mm / 8.3″ Length: 330 mm / 13.0″ |
| Warranties | 3 years limited warranty |
